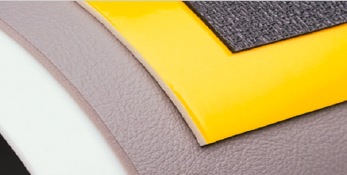

EVA foam is an ultra-light material, made from a combination of Ethylene and Vinyl Acetate.
EVA foam is an ultra-light material, made from a combination of Ethylene and Vinyl Acetate.
Foam has typical properties: light, elastic, flexible, soundproof, and heat
Color: white and black, other colors please inquire separately.
EVA foam technic paramete
| Item No. | SLT | LT | 25D | 35D | 45D | 55D | 60D | 70D |
| Density (g/cm^3) | 0.021~0.027 | 0.03~0.034 | 0.035~0.041 | 0.07~0.08 | 0.075~0.085 | 0.125~0.135 | 0.17~0.18 | 0.21~0.22 |
| Hardness (type C) | 16-18 º | 20-23 º | 24~30 | 30~35 | 45~50 | 55~60 | 60~65 | 70~75 |
| Original Sheet Size (cm) | 100*200 120*260 | 100*200 | 100*200 120*220 | 100*200 | 105*195 100*150 115*165 | 108*158 100*158 | 110*160 | 100*150 |
| Sheet Thickness (mm) | Custom | Custom | Custom | Custom | Custom | Custom | Custom | Custom |
| Tensile Strength (kg/cm^2) | 2 | 2.6 | 3.2 | 11.8 | 13 | 18.8 | 26.4 | 30.2 |
| Elongation at Break (%) | 180 | 180 | 180 | 180 | 130 | 120 | 150 | 260 |
| Tear Strength (kg/cm) | 1.9 | 2.2 | 2.4 | 3.8 | 3.3 | 5.6 | 8.3 | 9.5 |
| Compressive Strength at 25% Deflection (kg/cm^2) | 0.4 | 0.5 | 0.6 | 0.8 | 0.9 | 0.8 | 1.4 | 1.7 |
| Compressive Strength at 50% Deflection (kg/cm^2) | 1 | 1.15 | 1.15 | 1.8 | 1.5 | 1.3 | 2.4 | 3.1 |
| Compression Set to 50% of Original Thickness (%) | 10 | 12 | 14 | 20 | 30 | 2 | 1 | 1 |
| Water Absorption (%, by weight, room temp., 5 hrs) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 |
| Resin Type | EVA/LDPE | EVA/LDPE | EVA/LDPE | EVA/LDPE | EVA/LDPE | EVA/LDPE | EVA/LDPE | EVA/LDPE |
